Wireless Station (L181W)

L181W Wireless Station

  • Overview

  • Feature

  • Specification

  • Configuration

  • Download

L181W Wireless Station

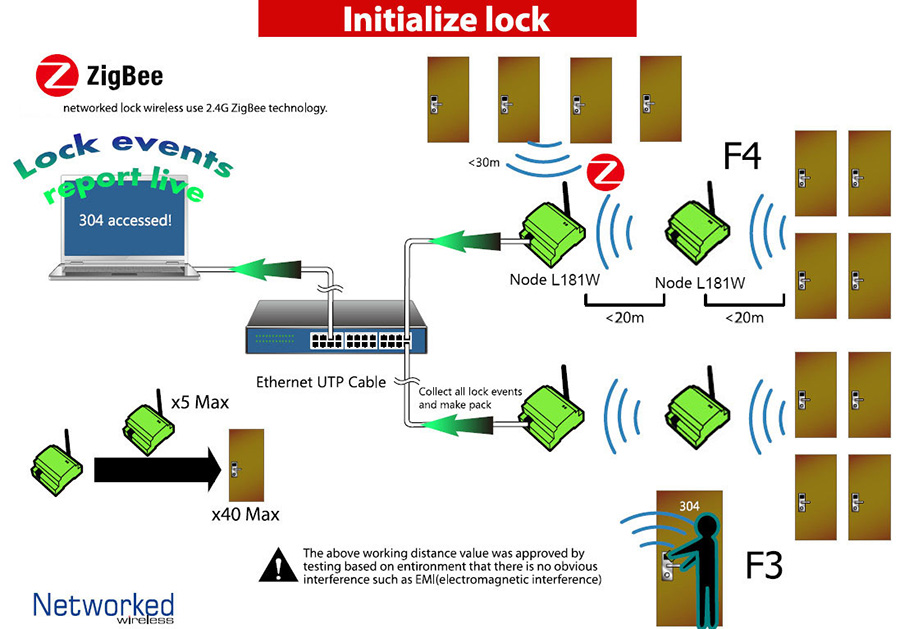

Wireless Center Node


17 cm antenna, 15‐20m distance

(One at each floor, transmit signal in straight, if bend or corner, add more)


Transmit signal between wireless lock and PC

1.Working Voltage: DC9-12V
2.Working Current: <100mA
3.Antenna: 8cm
4.Distance: 15-20m
5.Communication: TCP/IP
6.Transmission Technology: Zigbee 2.4GHz
7.Dimension: 77*85*55mm
8.Working Temperature: 0℃-70℃
9.Working Humidity: 15-85%RH

New product
