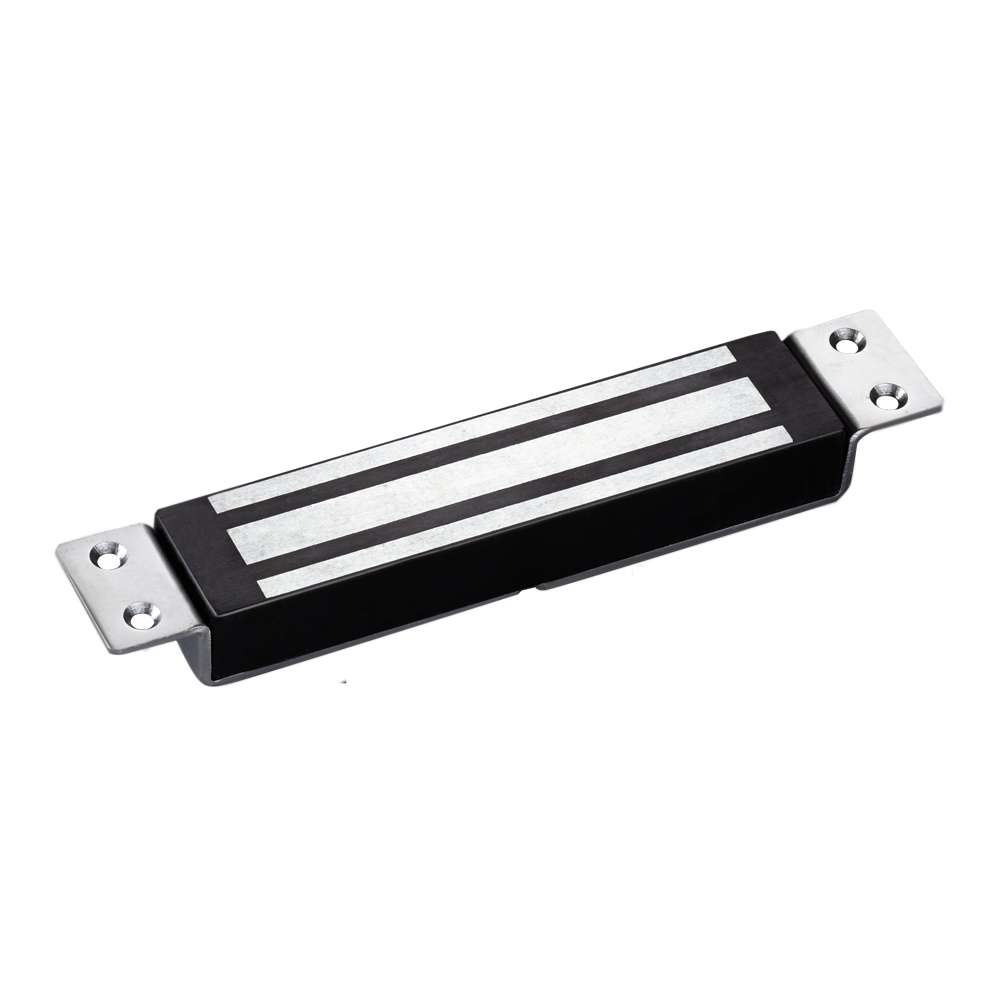

YM-350(LED)-DS Single Door Magnetic Lock(LED)

YM-350(LED)-DS Single Door Magnetic Lock(LED)

  • Overview

  • Feature

  • Specification

  • Configuration

  • Download

Comparing to YM-350(LED)-DS, Inbuilt dry contacts lock status signal output ( NO,NC,COM), door status signal output (NO,NC,COM) is the main difference. LED indicator is reserved. And the holding force is 800lbs.
Collinear Load Test 350kg, 800pounds.
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door.
LED Indicates the door Status.
Lock Status sensor(NO/NC/COM).
Door Status sensor(NO/NC/COM).
Anti-Residual Magnetism Designed.
High Strength Material, Anodized Aluminum Housing.
Design without Mechanical Failure.
Increase the holding Force, Dual Insulative Housing.
CE Certificate by European Union, MA Certificate by China Public Security Office.
Product Parameter Parameter Description
Lock Dimension 285Lx55Wx27.5H(mm)
Armature Plate Dimension 190Lx45Wx11H(mm)
Holding Force 350kg(800Lbs)
Input Voltage 12 or 24VDC
Current 12V/480mA or 24V/240mA
LED Red indicates the door is unlocked, Green indicates the door is locked
Signal Lock sensor & Door sensor
Suitable Wooden door, Glass door, Metal door, Fireproof door
Surface Temp ≤+20℃
Operating Temp  -10~+55℃(14-131F)
Humidity  0~90%(non-condensing)
Cover Finish Anodized aluminum
Lock Finish Zinc
Armature Plate Finish Zinc
Weight 2.7KG
