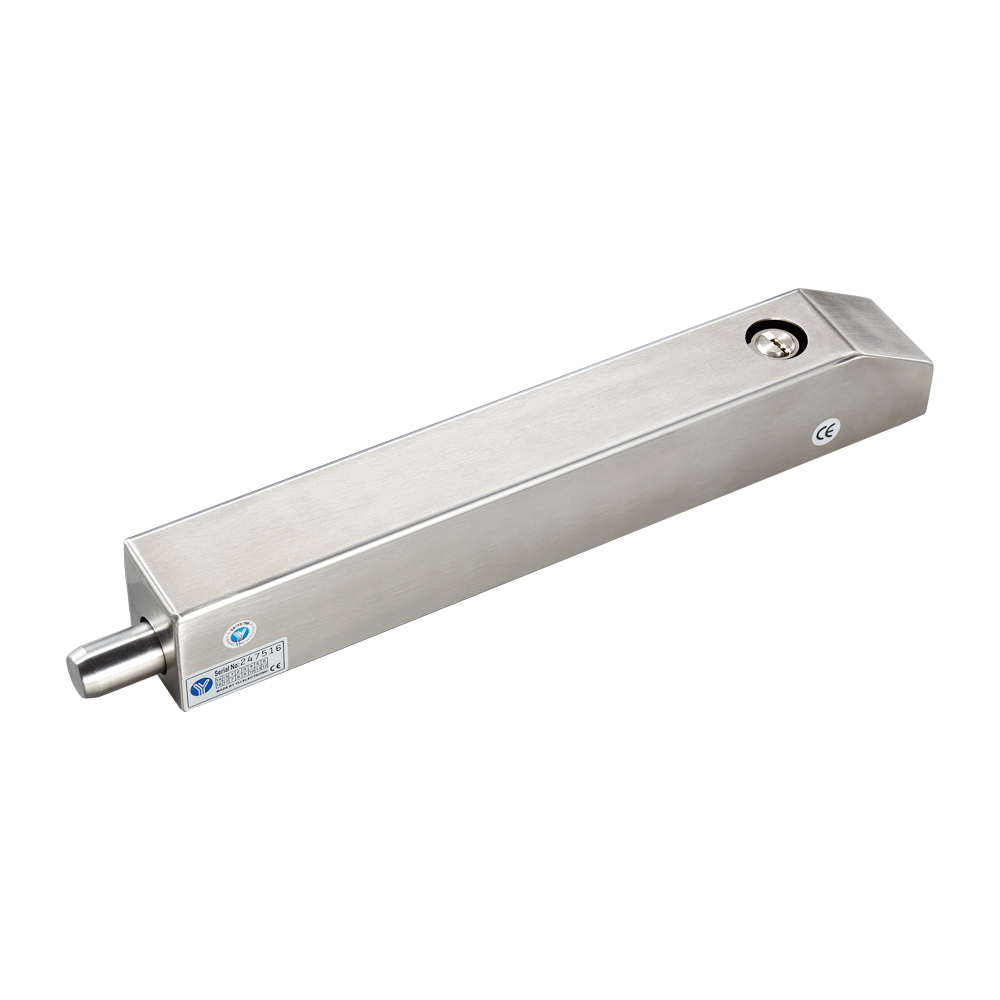

YB-100+ Fail safe electric bolt W/signal & time lock

YLI YB-100+ Fail safe electric bolt W/signal & time lock

  • Overview

  • Feature

  • Specification

  • Configuration

  • Download

YB-100+ is a fail safe electric bolt. with Timer Delay Function, suitable for glass door, wooden door, metal door. We supply integrity equipment to collocate with fully frame less glass door, swing-in door and so on. Build-in Photoelectricity control and low tempreture design.
Low Temperature, safe & Durable.
Low Power, Environmental Protection.
Special photoelectricity control, three steps current application.
Long Life  with 500000 cycles.
MOV Provides Reverse Current Protection.
Superior Strength Aluminium Alloy, Solid Stainless Steel Bolt.
Double protection for loading current.
Certificate: CE&MA
Product Parameter Parameter Description
Feature Fail Safe
Face Plate 205L*35W*41H(mm)
Strike 90L*25W*2H(mm)
Voltage 12VDC+
Start Current 900mA
Standby Current 110mA
Solid Bolt polishing housing, 800Kg Holding Force
Suitable For Wooden Door, Glass Door, Metal Door
Autolock Time Delay 0,3,6,9sec
Signal Output Door status Output,NO/COM
Surface Temp Low Temperature
Surface Temp 8mm
Operating Temperature -10~+55℃(14~131F)
Operating Humidity 0~90%(non-condensing)
Special Designed Tested to 500000 operations
Face Place Material High Aluminum
Weight 0.72kg

    New product
