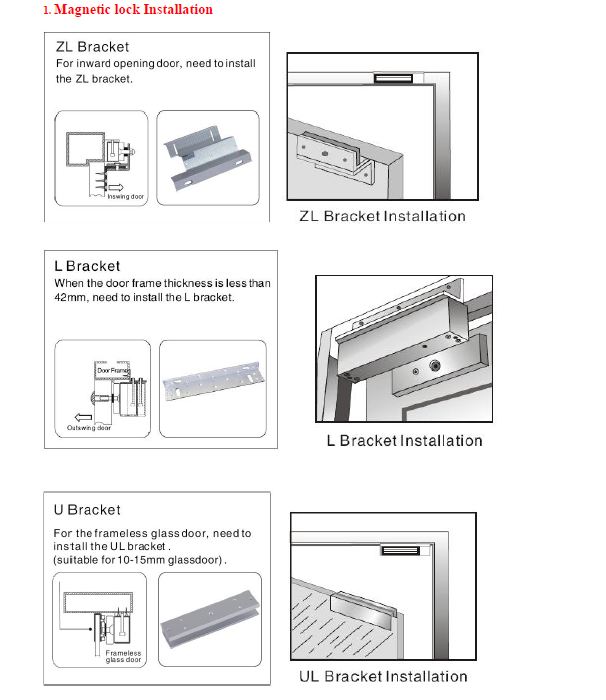

ZL Bracket for Inward Door

ZL Bracket 1. It is made of two parts and it is used on the inward door. 2. EL-180ZL/EL-280ZL/EL-350ZL/EL-500ZL/EL-750ZL are for your choice. 3. High Strength Aluminum is the main constitute.

  • Overview

  • Feature

  • Specification

  • Configuration

  • Download

Special Aluminum, Firm and Durable.


Special Design, Suitable with all kinds of Doors.


The Best Choice of Access Control.

N/A
Product Parameter Parameter Description
Dimension L：170x40x29(mm)     Z：130x38x38(mm) (MBK-180ZL)
L：250x47x28(mm)     Z：180x50x50(mm) (MBK-280ZL)
L：285x54x31(mm)     Z：189x57x50(mm) (MBK-350ZL)
L：265x70x45(mm)     Z：185x70x61(mm) (MBK-500ZL)
L：280x80x51(mm)     Z：190x70x61(mm) (MBK-750ZL)
Material High Strength Aluminum, Sandblast Finished
Suitable Narrow Door
Opening Mode 90 Degree Door
Finished for Shell Anodized aluminum
Weight 0.4kg/0.75kg/0.82kg/1.3kg/1.6kg

    New product
