Single Door Magnetic Lock(Waterproof) EL-500W

1200lbs single door electric lock with waterproof function.the case is stainless steel

  • Overview

  • Feature

  • Specification

  • Configuration

  • Download

Collinear Load Test 500Kg,1200pounds.

Dual Voltage 12 or 24 VDC (optional).

The Standard Voltage is 12VDC when Finished.

MOV Provides Reverse Current Protection.

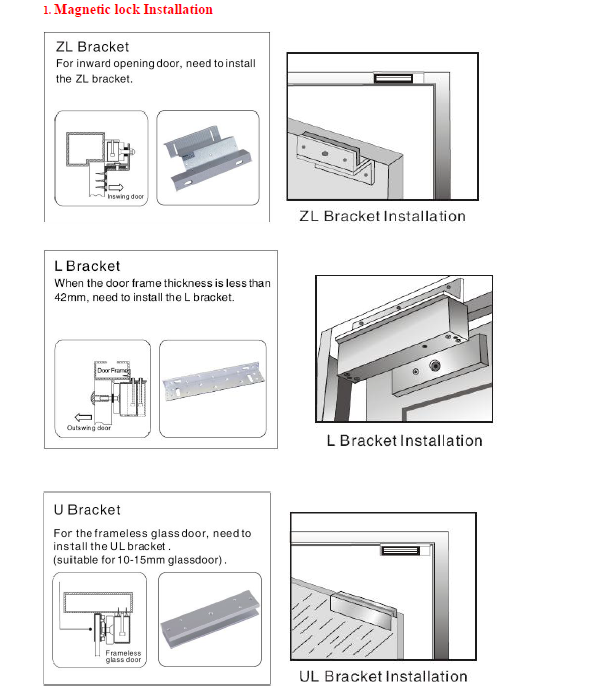

Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door.

The Shell Finished with Stainless Steel, more Strong and Durable.

100 percent waterproof,All the  Parts Pressurize in resin.

Special Waterproof, Indoor and Outdoor can be installed.

Design without Mechanical Failure, Depending on the powerful Magnetic force.

Increase the holding Force, Dual Insulative Housing.

CE Certificate by European Union,MA Certificate by China Public Security Office.
N/A

Product Parameter Parameter Description
Size  220Lx63Wx36H(mm)
Armature plate  185Lx60Wx13H(mm)
Holding Force  500kg(1200Lbs)
Voltage  12 or 24VDC
Current Draw:  12V/420mA or 24V/210mA
Suitable for  Wooden door , Glass door ,Metal door , Fireproof door
Surface Temp ≤+20℃
Operating Temp -10~+55℃(14-131F)
Suitable Humidity 0~95%(non-condensing)
Finishes for Shell  Anodized aluminum
Finishes for Magnetic  Zinc
Finishes for Armature  Zinc
Weight  4.5kg
