Double Door Magnetic Lock(EL-280D)

600lbs double door Magnetic Lock is for glass door, wooden door, fireproof door, sliding door and metal door. Dual Voltage 12 or 24 VDC is optional. CE and UL approves.

  • Overview

  • Feature

  • Specification

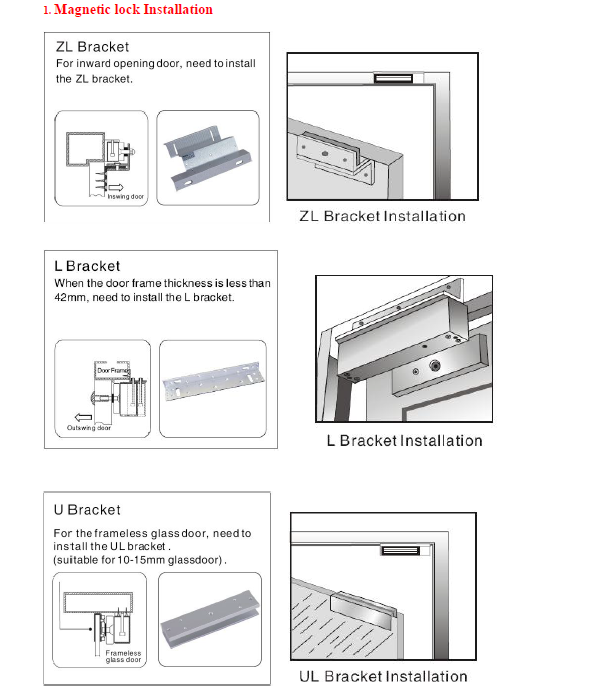

  • Configuration

  • Download

Collinear Load Test 280kgx2,600poundsx2.

Dual Voltage 12 or 24 VDC(optional).

The Standard Voltage is 12VDC when Finished.

MOV Provides Reverse Current Protection.

Anti-Residual Magnetism Designed.

High Strength Material,Anodized Aluminum Housing.

Design without Mechanical Failure.

Increase the holding Force,Dual Insulative Housing.

CE Certificate by European Union,MA Certificate by China Public Security Office.

Collinear Load Test 280kgx2, 600poundsx2.
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Anti-Residual Magnetism Designed.
High Strength Material, Anodized Aluminum Housing.
Design without Mechanical Failure.
Increase the holding Force, Dual Insulative Housing.
CE Certificate by European Union, MA Certificate by China Public Security Office.

Product Parameter Parameter Description
Size 500Lx48.5Wx25H(mm)
Armature Plate Dimension 180Lx38Wx11H(mm)
Holding Force 280kgx2(600Lbsx2)
Input Voltage 12 or 24VDC
Current 12V/500mA*2 or 24V/250mA*2
Suitable Wooden door , Glass door ,Metal door , Fireproof door
Surface Temp ≤+20℃
Operating Temp  -10~+55℃(14-131F)
Humidity  0~90%(non-condensing)
Cover Finish Anodized aluminum
Lock Finish Zinc
Armature Plate Finish Zinc
Weight 4.2kg
